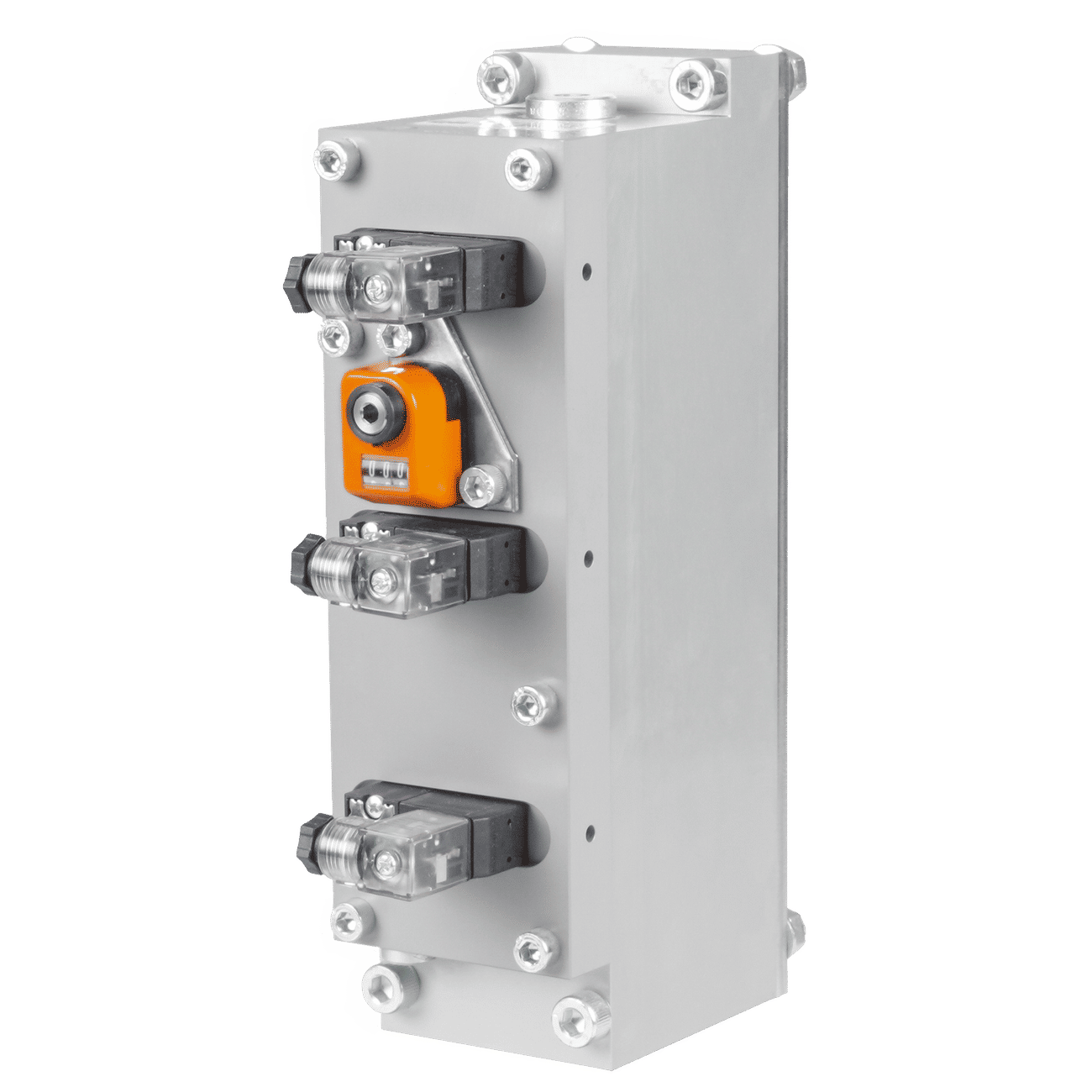

Blowing Block EasyBlow

Artikelnummer(n)

  • 263.261.00

Der Seitz Blowing Block EasyBlow wurde für die schnellste und kostengünstigste Flaschenproduktion entwickelt.

Technische Daten

Blowing Block EasyBlow

FunctionP1 and P2: 2/2-way NC
with integrated check valve
EXH: 2/2-way NO
Operating pressure4 … 40 bar
Pilot pressure7.0 bar +0/-0.5 bar
Orifice diameterPre-blow P1: Ø 6.0 mm
Finish-blow P2: Ø 15.0 mm
Exhaust EXH: Ø 18.0 mm
Port sizesPilot air supply PP: G 1/8" female
Pre-blow P1: Ø 16.0 mm
Finish-blow P2: Ø 16.0 mm
Exhaust EXH: G 1 - 1/4" female
Cavity
(Out): Ø 26 mm
MaterialBlock body: Aluminium coated
Pistons: Plastic, FDA compliant
Grease: FDA compliant
MountingAny position
MediaCompressed air according
to ISO 8573-1
– Particles: Class 2
– Pressure dew point: Class 4
– Oil content: Class 2
Media temperature+5 °C … +40 °C
Ambient temperature+10 °C … +50 °C
Pilot valves24V DC, 2.5 W, IP65
Without manual override
Female connectors included
