Directional Control Valve

Directional Control Valves (DCV) werden zur Positionierung der Steuerstäbe als Teil des SWR-Steuerstabantriebssystems verwendet.

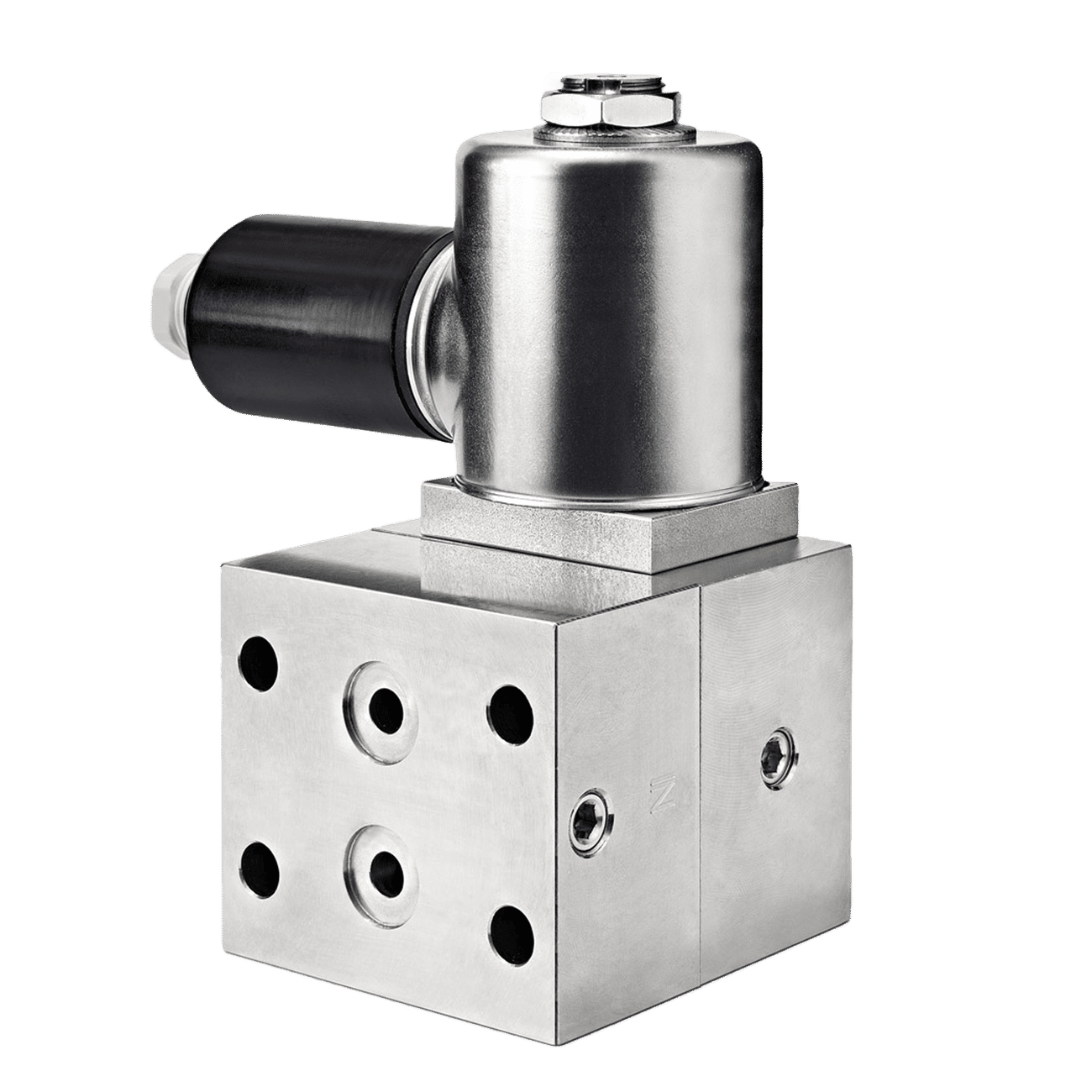

Das DCV-Typ 2538 wurde nach den ursprünglichen Spezifikationen entworfen und passt genau in die vorhandene Montagekonfiguration der SWR-Hydrauliksteuereinheit, ohne dass Hardware-Modifikationen erforderlich sind.

Bewährtes Design ohne gemeldete Fehlfunktionen seit der Erstinstallation im Jahr 1999.
Seitz liefert Ersatzteile, Ersatzmagnete und Wartungsdienstleistungen für die DCVs.

Technische Daten

Directional Control Valve

Qualifications

Safety class2
Seismic categoryI
Electrical class1E passive
Seismic4.5 g; 10 – 31.5 Hz
Radiation3x10³ Gy
Qualification and design basesIEEE 323-1974; IEEE 382-1980;
IEEE 344-1987; ASME III NC
Edition 95; SPTE/97/004
Rev. 1; GSKL SS-001 1-3 Rev. 1
Qualified lifetime *20 years (under normal ambient conditions)

* Maintenance
Every 10 years: It is recommended to replace all parts marked with an asterisk on the parts list in the respective repair kit Every 12 years: It is recommended to replace all solenoid coils that are operated with permanent energization / continuous operation

Harsh environment

Medium temperature138 °C (280.4 °F)
Pressure138 bar (2002 psig)
Ambient temperature85 °C (185 °F)
Relative humidity100 %
