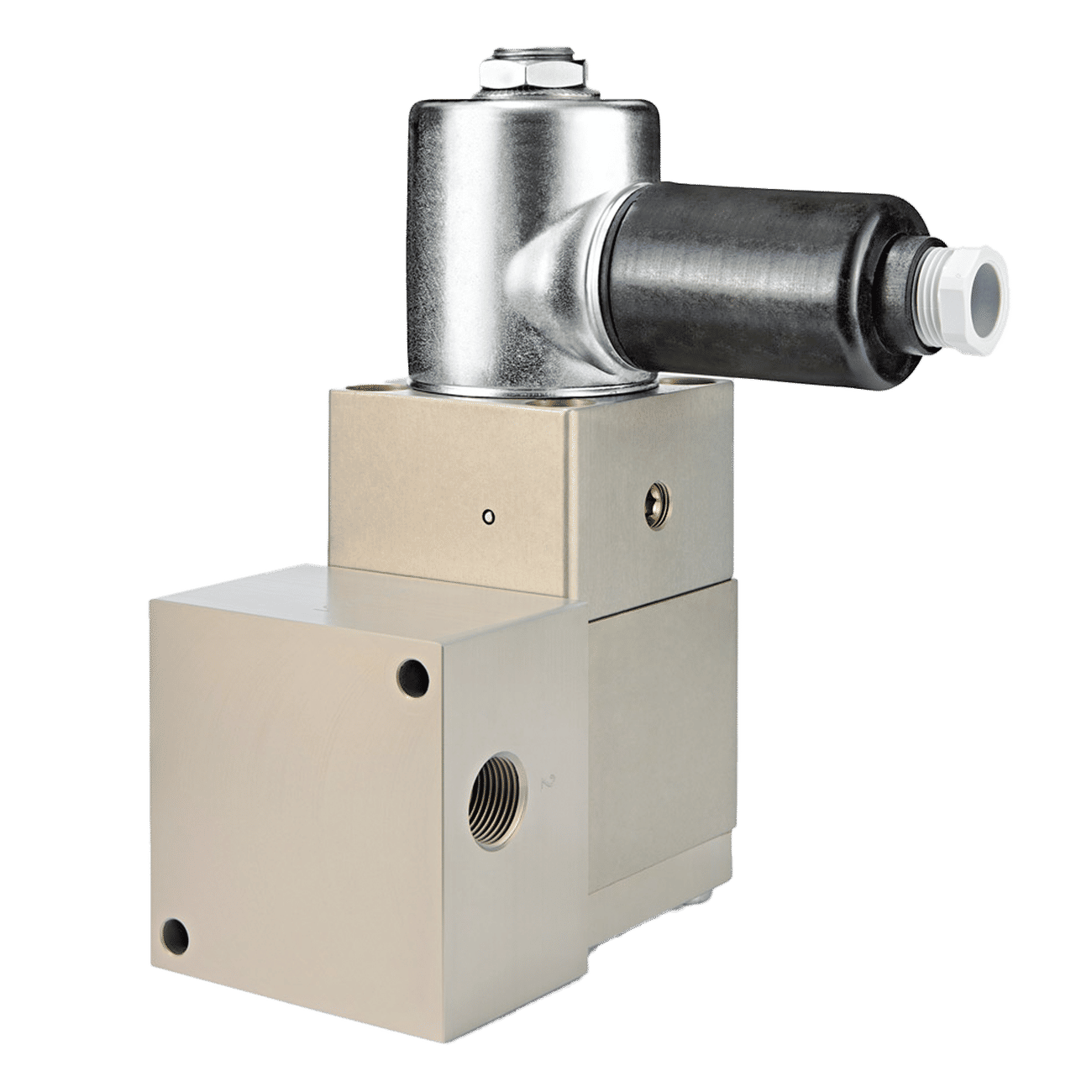

HPN Valve

Verwandte Produkte

Ventile für verschiedene KKW-Anwendungen

Die Installation und Wartung der Green File Ventile ist einfach und effizient.

  • Mehr als 10.000 Magnetventile sind seit 1994 in Betrieb
  • Keine Fehlfunktionen in 200'000 Ventiljahren Dauerbetrieb mit Stromversorgung gemeldet
  • Alle Green File-Magnetventile sind modular aufgebaut und auf Grundplatten/Verteilern montiert, die eine schnelle Trennung ermöglichen.


Seitz liefert Ersatzteile, Ersatzmagnete und Wartungsdienstleistungen für alle Green File Ventile.

HPN Valve

Qualifications

Safety class1E
Seismic categoryI
Qualified lifetime *25 years
Qualification and design basesIEC 60068-2-6; IEC 60068-2-30; IEEE
323-1974; IEEE 382-2006
-1975/1987 IEEE 344-1975

* Maintenance cycle: up to 12 years, depending on use and ambient conditions

Harsh environment

DBE-conditions181 °C (358 °F)
Pressure peak2×10⁶ rad

Specification

Operating systemDirect or pilot operated with system media or auxiliary fluid
Function2/2-way, 3/2-way, 5/2-way, and others NC or NO (where applicable); redundant valve block combinations
FluidAir/Nitrogen
Nominal diameter10 to 16 mm (0.4 to 0.63 in)
Flow coefficient Kv (Cv)2.3 to 4.5 (2.7 to 5.23)
Response timeMax. 50 ms
Ambient temperatureNormal operation: max. 55 °C (131 °F) Extreme operation: max. 90 °C (194 °F) for 8h
Pressure range2 to 32 bar (29 to 464 psig)
LeakageMax. 0.12 Nl/h (2 scc/min)
Connection typeThread-connection or flange
WeightFrom 0.2 to approx. 8 kg (0.44 to 17.6 lbs)
MaterialBody: Aluminum Ti-anodized (Stainless Steel on request) Elastomers: FKM
